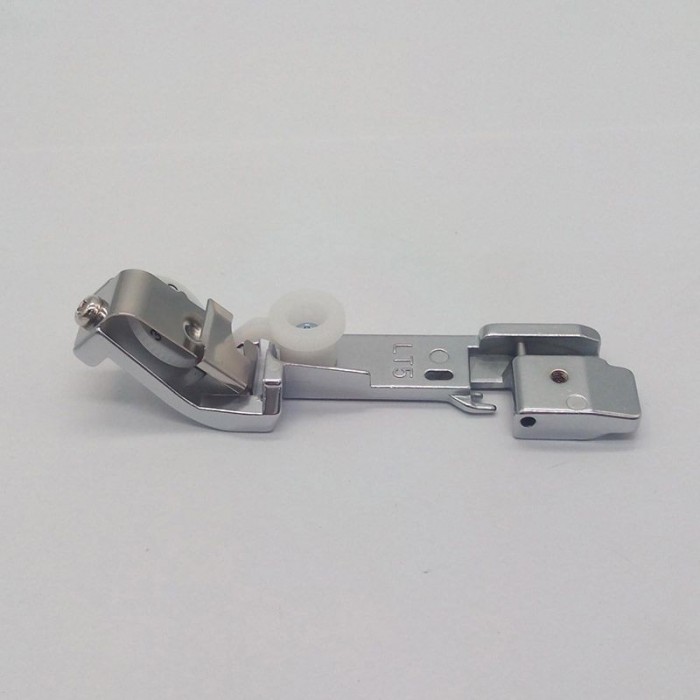

Foot for elastic application overlocker Brother - XB3632001

Product code XB3632001

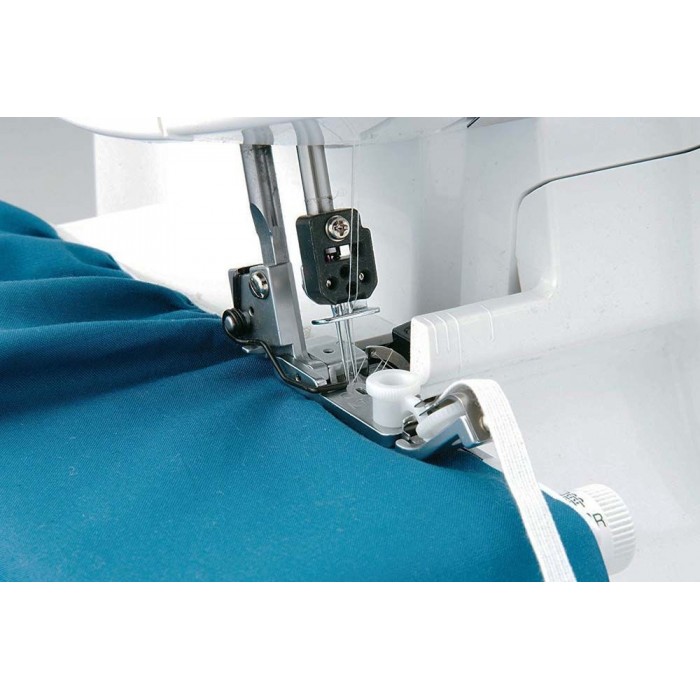

The elastic foot guides and pulls a tight elastic band while sewing it on the fabric. Machine settings: 3-thread stitch length 4 - 5, width N, N-point tab. Fabric: medium thickness fabric.


1. Loosen the screw on the front of the elastic foot to reduce the tension of the roller and insert the elastic into the foot.

2. Apply the foot and pull the elastic until it reaches the back of the foot.

3. Sew the elastic only until it comes out of the foot. Tighten the tensioning screw to pull the elastic.

4. Place the fabric under the foot and sew it together with the elastic.

5. Check the point and adjust the voltage if necessary.

6. To adjust the tension of the elastic: a. Turn the tensioning screw to the right for more tension (right = tighten). b. Turn the screw to the left to reduce the tension (left = loosen).

SUITABLE FOR THE FOLLOWING BROTHER CUTTERS:

1034D
3034D
4234D
